2024年最新の350-601試験問題集で最近更新された587問題 [Q249-Q266]

2024年最新の350-601試験問題集で最近更新された587問題

Cisco 350-601リアル2024年最新のブレーン問題集で模擬試験問題集

Cisco 350-601 認定試験（Implementing Cisco Data Center Core Technologies（350-601 DCCOR）とも呼ばれる）は、Ciscoデータセンターテクノロジーの実装とトラブルシューティングの専門知識を示したいIT専門家を対象に設計されています。この試験は、ネットワーク、コンピューティング、ストレージネットワーク、自動化、セキュリティを含むコアデータセンターテクノロジーを実装するために必要な知識とスキルを検証します。

質問 # 249
A network administrator must configure an extra keyring in Cisco UCS Manager. The key must provide a high level of encryption and secure authentication when users use the web interface. Which configuration command set must be applied to meet these requirements?

A. Option D
B. Option B
C. Option A
D. Option C

正解：D

解説：
https://www.cisco.com/c/en/us/td/docs/unified_computing/ucs/ucs-manager/CLI-User-Guides/Admin-Management/3-1/b_Cisco_UCS_Manager_CLI_Administration_Mgmt_Guide_3_1/b_Cisco_UCS_Manager_CLI_Administration_Mgmt_Guide_3_1_chapter_0110.html
"cipher-suite-mode secure" is invalid command.
"Cipher-suite-mode high" is valid command.
"tls-protocol tls1-2" is invalid command.
"Ssl-protocol tls1-2" is valid command.

質問 # 250
Refer to the exhibit.

An engineer must distribute all the host ports to use all eight configured FEX uplinks. The solution must minimize disruption if an uplink fails Which action accomplishes this objective?

A. Set the pinning max-links value to 8
B. Change the supported FEX type
C. Configure the eight uplinks in a port channel
D. Statically assign each host interface to a fabric uplink

正解：C

解説：
Traffic disruption should be minimised when an uplink fails. If pinning was used and an uplink failed, then traffic associated with the failed link would be disrupted until it could be re-routed. Using a port-channel is much less disruptive.

質問 # 251
An engineer mus! configure HSRP protocol on two Cisco Nexus 9000 Series Switches running a virtual port channel. In addition, the HSRP implementation must meet these requirements:
* It must allow more than 500 groups.
* switch 1 must act as the primary switch.
* Both switches must use a user-defined hardware address.
Drag and drop the commands from the right to complete a configuration of the HSRP on the left. The commands are used more than once. Not all commands are used.

正解：

解説：

Explanation
Switch 1:
Box 1 = hsrp version 2
Box 2 = priority 100
Box 3 = mac-address 6000.6000.6000
Switch 2:
Box 1 = hsrp version 2
Box 2 = priority 255
Box 3 = mac-address 6000.6000.6000

質問 # 252
An engineer is duplicating an existing Cisco UCS setup at a new site. What are two characteristics of a logical configuration backup of a Cisco UCS Manager database? (Choose two.)

A. contains the configuration organizations and locales
B. contains the VLAN and VSAN configurations
C. contains all of the configurations
D. contains the AAA and RBAC configurations
E. contains a file with an extension.tgz that stores all of the configurations

正解：A、E

解説：
A logical configuration backup of a Cisco UCS Manager database is a file that contains all of the configurations that are stored in the Cisco UCS Manager database, such as policies, pools, service profiles, templates, and firmware versions. The file has an extension .tgz and can be created and restored using the Cisco UCS Manager GUI or CLI. A logical configuration backup also contains the configuration organizations and locales, which are logical entities that group and isolate resources within a Cisco UCS domain.
Organizations and locales can be used to delegate administrative tasks and privileges to different users or groups. The other options (AAA and RBAC configurations, VLAN and VSAN configurations) are not part of a logical configuration backup, but rather a full state backup, which is a different type of backup that includes the operational state and statistics of the Cisco UCS domain. References: For more information on how to create and restore a logical configuration backup of a Cisco UCS Manager database, please refer to the following resources:
* Cisco UCS Manager Backup and Restore Management Guide
* Cisco UCS Manager Configuration Common Practices and Quick Start Guide

質問 # 253
A network engineer implements a Python script on a Cisco Nexus 9000 Series Switch with redundant supervisors. The script is located on a built-in container that runs as part of the Cisco NX-OS system. The requirement is to automate the periodic transfer of the Python script to a redundant supervisor. In addition, the script must be transferred to an external server using encryption and authentication. Which configuration set meets these requirements?

A. Implement the guest shell synchronization feature.
Configure a scheduler job to transfer the script to the TFTP server.
B. Enable the checkpoint feature.
Configure an EEM job to transfer the script to the SCP server.
C. Enable the checkpoint feature.
Configure a scheduler job to transfer the script to the HTTP server.
D. Implement the guest shell synchronization feature.
Configure a CRON job to transfer the script to the SCP server.

正解：B

質問 # 254

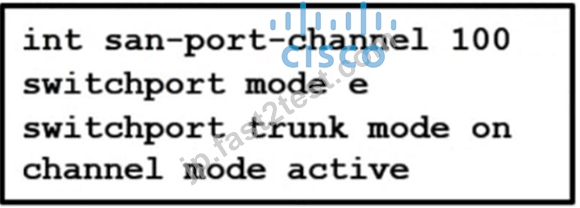

Refer to the exhibit.

An engineer is connecting a Cisco MDS 9700 Series Multilayer Director to a downstream Cisco Nexus
5672UP switch. Which command set must be used to complete the configuration?
A)

B)

C)

D)

A. Option D
B. Option A
C. Option C
D. Option B

正解：B

質問 # 255
An engineer must use the Embedded Event Manager to monitor events that occur on a cisco Nexus 9000 series switch. An environment variable needs to be created so that several policies use the monitored events in in their actions. The external email server is represented by IP address 10.10.10.10. which command sets the environment variable?

A. N9k2 (config)# event manager environment mallserver ''10.10.10.10''
B. N9k2# event manager environment mallserver ''10.10.10.10''
C. N9k2(config)# event manager policy environment mallserver ''10.10.10.10''
D. N9k2 (config-apple1)# environment mallserver ''10.10.10.10''

正解：A

解説：
To set an Embedded Event Manager (EEM) environment variable, use the event manager environment command in global configuration mode. To disable an EEM environment variable, use the no form of this command. https://www.cisco.com/c/en/us/td/docs/ios-xml/ios/eem/command/eem-cr-book/eem-cr-e1.html

質問 # 256

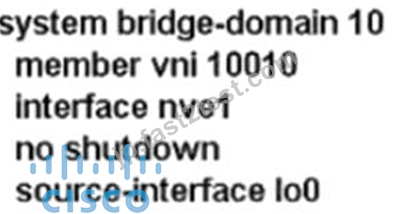

Refer to the exhibit.

A network engineer configures the VXLAN between the routers in a data center. The VLAN 10 must be extended between routers A and B. The initial VXLAN configuration is completed on Router A. Which configuration finishes the VXLAN configuration on Router A?

正解：D

質問 # 257
Drag and drop the network assurance concepts from the left onto the corresponding benefits on the right.

正解：

解説：

Explanation
Diagram Description automatically generated

質問 # 258
An engineer must create a new Cisco UCS user account to perform these actions:
- Modify systems logs, faults, and power management settings.
- View access to all other configuration in the UCS domain.
Which two roles must be assigned to the user to permit these actions? (Choose two.)

A. Facility Manager
B. Read-Only
C. Operations
D. Server Compute
E. Administrator

正解：A、C

解説：
https://www.cisco.com/en/US/docs/unified_computing/ucs/sw/cli/config/guide/1.4.1/CLI_Config_G uide_1_4_1_chapter9.html#concept_842995A3D6954CDDBC07EAB7EE6E74B5

質問 # 259
Which two firmware packages are included in the Cisco UCS C-Series Rack-Mount UCS-Managed Server Software bundle? (Choose two.)

A. system
B. PSU
C. third-party
D. BIOS
E. CIMC

正解：D、E

解説：
Options D and E are the correct firmware packages that are included in the Cisco UCS C-Series Rack-Mount UCS-Managed Server Software bundle. The bundle contains the firmware for the CIMC (Cisco Integrated Management Controller) and the BIOS (Basic Input/Output System) of the server. The other options are either not part of the bundle or not applicable for the server. References:
* Cisco UCS C-Series Rack-Mount Server Software and Firmware Compatibility Matrix for Cisco UCS Manager, Release 4.0 [Cisco UCS Manager], Cisco UCS C-Series Rack-Mount Server Software and Firmware Compatibility Matrix for Cisco UCS Manager, Release 4.0, Cisco UCS C-Series Rack-Mount UCS-Managed Server Software Bundle
* Cisco UCS C-Series Servers Integrated Management Controller CLI Configuration Guide, Release 4.0
[Cisco Integrated Management Controller], Cisco UCS C-Series Servers Integrated Management
* Controller CLI Configuration Guide, Release 4.0, Firmware Management

質問 # 260
Drag and drop the hyperflex characteristics from the left onto the appropriate. HyperFlex Node types on the right. Not all options are used.

正解：

解説：

質問 # 261
An engineer must authenticate OSPF on interfaces of the Cisco Nexus 9000 Series Switch so that:
* ethl/1 uses clear text password.
* ethl/2 uses encrypted md5 password.
Drag and drop the commands from the bottom onto the boxes in the code to complete the configuration. Not all commands are used.

正解：

解説：

質問 # 262
The Cisco Nexus 5600 Series Switch experiences occasional packet drops on interface ethernet 1/16. An engineer wants to implement a SPAN session to investigate the issue further. The network analyzer to which the packets must be directed is located on interface 1/3. The analyzer is limited on disk space available for traffic capture, so the Nexus switch should send only the relevant dat a. Which two command sets configure the SPAN session that meets these requirements? (Choose two.)

A. Option D
B. Option A
C. Option C
D. Option B
E. Option E

正解：B、E

解説：
https://www.cisco.com/c/en/us/products/collateral/switches/nexus-5000-series-switches/white-paper-c11-733022.html The information to be sent is regarding dropped packets only.

質問 # 263

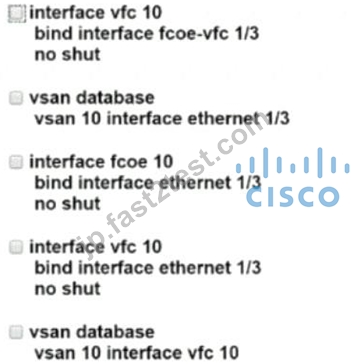

Refer to the exhibit.

An engineer must configure FCoE on a Cisco Nexus switch. Which two command sets complete this configuration? (Choose two.)

A. Option C
B. Option B
C. Option A
D. Option E
E. Option D

正解：D、E

質問 # 264
Which statement about monitoring Fibre Channel traffic on a Cisco UCS 6332 Fabric Interconnect is true?

A. The destination port for monitoring must be an unassigned Fibre Channel port.
B. Fibre Channel traffic can be monitored only on one vHBA per server.
C. Fibre Channel traffic can be monitored as it is encapsulated as FCoE.
D. The monitoring of Fibre Channel traffic is limited to the default VSAN.

正解：A

質問 # 265
Which two components should be checked when a Cisco Nexus 9000 Series Switch fails to boot using POAP? (Choose two.)
