質問 # 77
You have an Azure subscription that contains a resource group named RG1 and a virtual network named VNet1 You need to deploy Azure Firewall to RG1. The solution must minimize administrative effort What should you do first?
- A. Create a new resource group named AzureFirewallResourceGroup.
- B. On VNet1, create a virtual subnet named AzureFirewallSubnet.
- C. Create a secured virtual hub named AzureFirewallHub.
- D. Create a new virtual network named AzureFirewallNetwork.
正解：B
質問 # 78
SIMULATION
Task 7
You plan to deploy 100 virtual machines to subnet4-1. The virtual machines will NOT be assigned a public IP address. The virtual machines will call the same API. which is hosted by a third party. The virtual machines will make more than 10,000 calls per minute to the API.
You need to minimize the risk of SNAT port exhaustion. The solution must minimize administrative effort.
正解：
解説：
See the Explanation below for step by step instructions
Explanation:
To minimize the risk of SNAT port exhaustion for your 100 virtual machines in subnet4-1, while ensuring minimal administrative effort, you can use an Azure NAT Gateway. This service provides scalable and resilient outbound connectivity for virtual networks, dynamically allocating SNAT ports to avoid exhaustion.
Step-by-Step Solution
Step 1: Create a NAT Gateway
Navigate to the Azure Portal.
Search for "NAT gateways" and select it.
Click on "Create".
Enter the following details:
Subscription: Select your subscription.
Resource Group: Select an existing resource group or create a new one.
Name: Enter a name for the NAT gateway (e.g., NATGateway-Subnet4-1).
Region: Select the region where your virtual network is located.
Click on "Next: Outbound IP".
Step 2: Configure Outbound IP Addresses
Choose whether to use existing public IP addresses or create new ones.
If creating new ones, click on "Add new" and configure the new public IP addresses.
Click on "Next: Subnet".
Step 3: Associate the NAT Gateway with Subnet4-1
Click on "Associate subnet".
Select the virtual network that contains subnet4-1.
Select subnet4-1 from the list of subnets.
Click on "OK".
Step 4: Review and Create
Review your settings to ensure everything is correct.
Click on "Review + create" and then "Create".
Explanation:
Azure NAT Gateway: This service provides outbound connectivity for virtual networks, dynamically allocating SNAT ports across all VM instances within a subnet. This dynamic allocation helps prevent SNAT port exhaustion, especially in scenarios with high outbound connection volumes12.
Dynamic SNAT Port Allocation: Unlike static allocation methods, NAT Gateway dynamically allocates SNAT ports based on demand, ensuring efficient use of available ports and reducing the risk of exhaustion2.
By following these steps, you can ensure that your 100 virtual machines in subnet4-1 can make the necessary API calls without running into SNAT port exhaustion, all while minimizing administrative effort.
質問 # 79
You have an Azure subscription.
You plan to deploy Azure Firewall Premium, enable all the Premium features, and configure both network and application rules.
Which type of rule will the firewall process first?
- A. network
- B. infrastructure
- C. application
- D. threat intelligence
正解：A
質問 # 80
SIMULATION
Task 1
You need to ensure that virtual machines on VNET1 and VNET2 are included automatically in a DNS zone named contoso.azure. The solution must ensure that the virtual machines on VNET1 and VNET2 can resolve the names of the virtual machines on either virtual network.
正解：
解説：
See the Explanation below for step by step instructions
Explanation:
To achieve the task of ensuring that virtual machines on VNET1 and VNET2 are included automatically in a DNS zone named contoso.azure, and that they can resolve the names of the virtual machines on either virtual network, you can follow these steps:
Step-by-Step Solution
Step 1: Create a Private DNS Zone
Navigate to the Azure Portal.
Search for "Private DNS zones" in the search bar and select it.
Click on "Create".
Enter the DNS zone name as contoso.azure.
Select the appropriate subscription and resource group.
Click on "Review + create" and then "Create".
Step 2: Link VNET1 and VNET2 to the DNS Zone
Go to the newly created DNS zone (contoso.azure).
Select "Virtual network links" from the left-hand menu.
Click on "Add".
Enter a name for the link (e.g., VNET1-link).
Select the subscription and virtual network (VNET1).
Enable auto-registration to ensure that VMs are automatically registered in the DNS zone.
Click on "OK".
Repeat the process for VNET2.
Step 3: Configure DNS Settings for VNET1 and VNET2
Navigate to VNET1 in the Azure Portal.
Select "DNS servers" under the "Settings" section.
Ensure that the DNS server is set to "Default (Azure-provided)".
Repeat the process for VNET2.
Step 4: Verify Name Resolution
Deploy a virtual machine in VNET1 and another in VNET2.
Connect to the virtual machines using Remote Desktop Protocol (RDP) or Secure Shell (SSH).
Test name resolution by pinging the VM in VNET2 from the VM in VNET1 using its hostname (e.g., ping <VM-name>.contoso.azure).
Explanation:
Private DNS Zone: This allows you to manage and resolve domain names in a private network without exposing them to the public internet.
Virtual Network Links: Linking VNET1 and VNET2 to the DNS zone ensures that VMs in these networks can register their DNS records automatically.
Auto-registration: This feature automatically registers the DNS records of VMs in the linked virtual networks, simplifying management.
DNS Settings: Using Azure-provided DNS ensures that the VMs can resolve each other's names without additional configuration.
By following these steps, you ensure that virtual machines on VNET1 and VNET2 are included automatically in the DNS zone contoso.azure and can resolve each other's names seamlessly.
質問 # 81

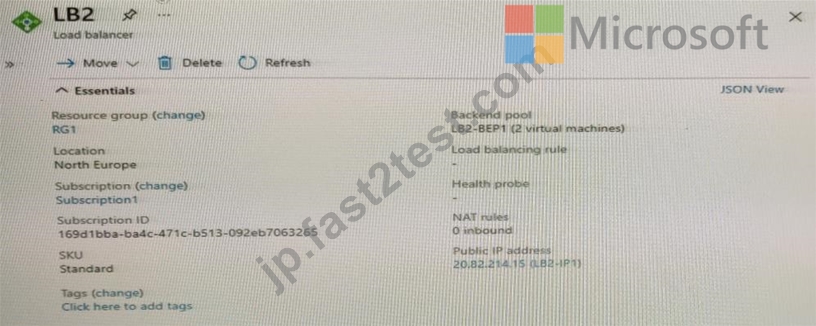

You have the Azure load balancer shown in the Load Balancer exhibit.

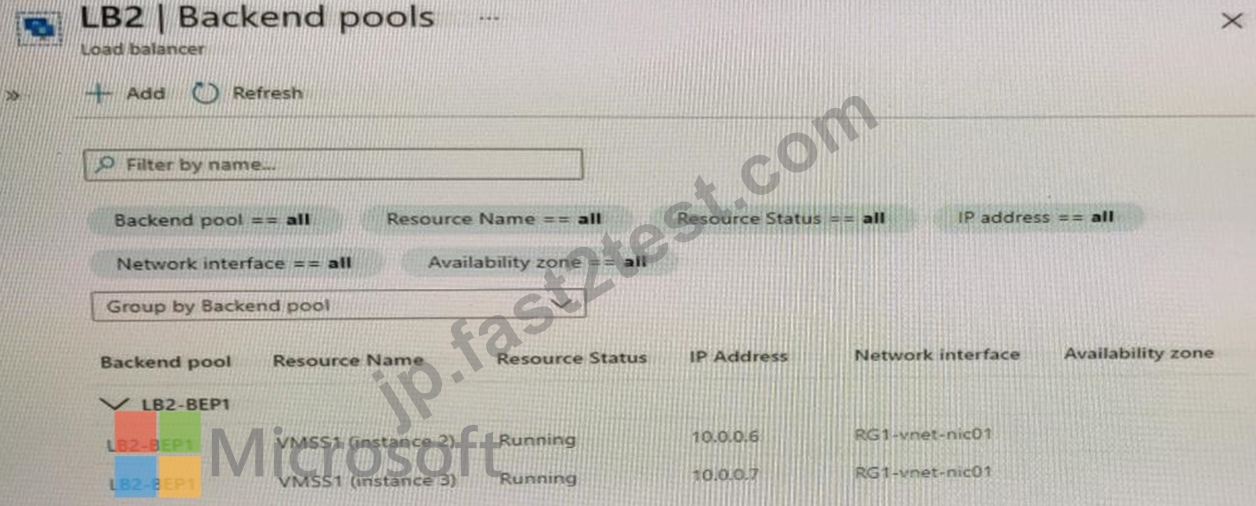

LB2 has the backend pools shown in the Backend Pools exhibit.
You need to ensure that LB2 distributes traffic to all the members of VMSS1.
Which two actions should you perform? Each correct answer presents part of the solution.
NOTE: Each correct selection is worth one point.
- A. Add a load balancing rule.
- B. Add a network interface to VMSS1.
- C. Configure a health probe.
- D. Add a public IP address to each member of VMSS1.
正解：A、C
解説：
Reference:
https://docs.microsoft.com/en-us/azure/load-balancer/quickstart-load-balancer-standard-public-portal?tabs=optio
質問 # 82
SIMULATION
Task 5
You need to ensure that requests for wwwjelecloud.com from any of your Azure virtual networks resolve to frontdoor1.azurefd.net.
正解：
解説：
See the Explanation below for step by step instructions
Explanation:
Here are the steps and explanations for ensuring that requests for wwwjelecloud.com from any of your Azure virtual networks resolve to frontdoor1.azurefd.net:
To use a custom domain with your Azure Front Door, you need to create a CNAME record with your domain provider that points to the Front Door default frontend host. A CNAME record is a type of DNS record that maps a source domain name to a destination domain name1.
To create a CNAME record, you need to sign in to your domain registrar's website and go to the page for managing DNS settings1.
Create a CNAME record with the following information1:
Source domain name: wwwjelecloud.com
Destination domain name: frontdoor1.azurefd.net
Save your changes and wait for the DNS propagation to take effect1.
To verify the custom domain, you need to go to the Azure portal and select your Front Door profile. Then select Domains under Settings and select Add2.
On the Add a domain page, select Non-Azure validated domain as the Domain type and enter wwwjelecloud.com as the Domain name. Then select Add2.
On the Domains page, select wwwjelecloud.com and select Verify. This will check if the CNAME record is correctly configured2.
Once the domain is verified, you can associate it with your Front Door endpoint. On the Domains page, select wwwjelecloud.com and select Associate endpoint. Then select your Front Door endpoint from the drop-down list and select Associate2.
質問 # 83

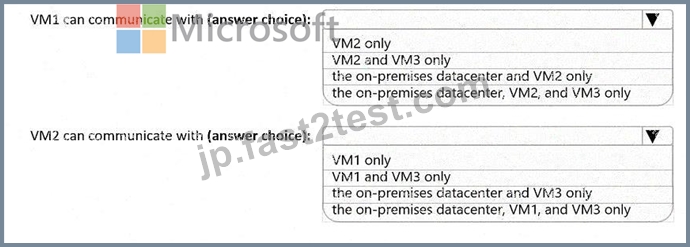

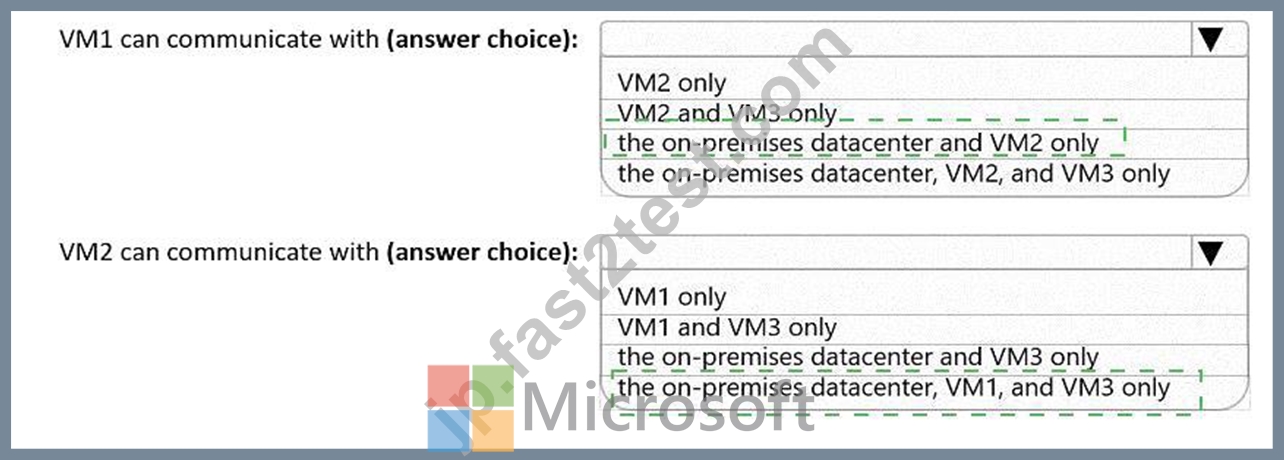

You have an Azure environment shown in the following exhibit.
Use the drop-down menus to select the answer choice that completes each statement based on the information presented in the graphic.
NOTE: Each correct selection is worth one point.
正解：
解説：
Explanation:
Reference:
https://docs.microsoft.com/en-us/azure/vpn-gateway/vpn-gateway-peering-gateway-transit?toc=/azure/virtual- network/toc.json
https://docs.microsoft.com/en-ca/azure/virtual-network/ip-services/ipv6-overview#capabilities
質問 # 84

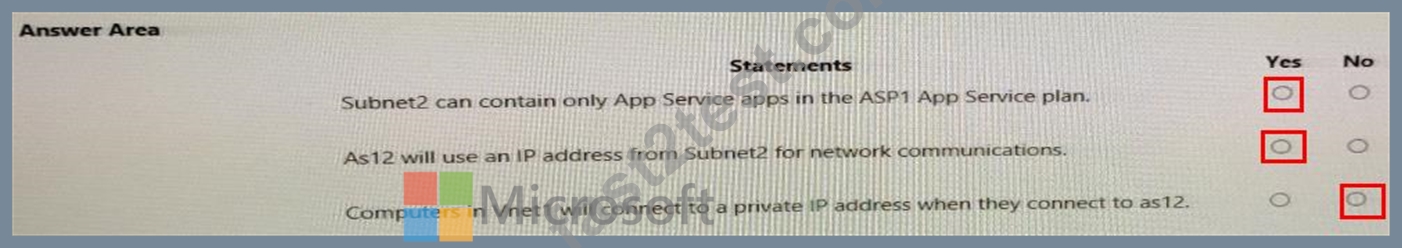

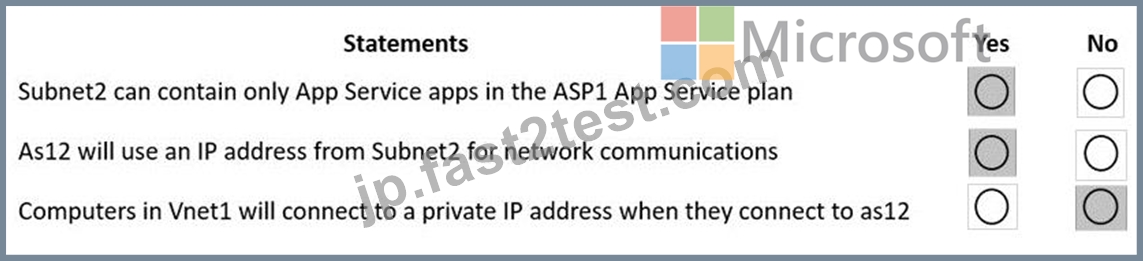

You have the Azure App Service app shown in the App Service exhibit.
The VNet Integration settings for as12 are configured as shown in the Vnet Integration exhibit.
The Private Endpoint connections settings for as12 are configured as shown in the Private Endpoint connections exhibit.

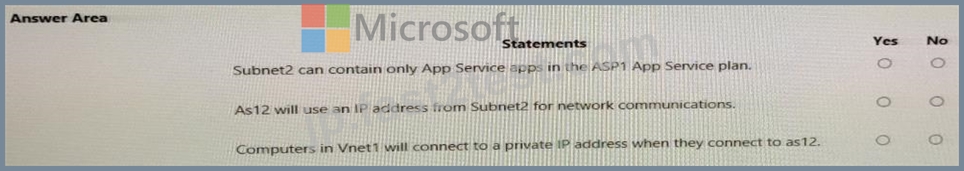

For each of the following statements, select Yes if the statement is true. Otherwise, select No.
NOTE: Each correct selection is worth one point.
正解：
解説：
Reference:
https://docs.microsoft.com/en-us/azure/app-service/web-sites-integrate-with-vnet
質問 # 85

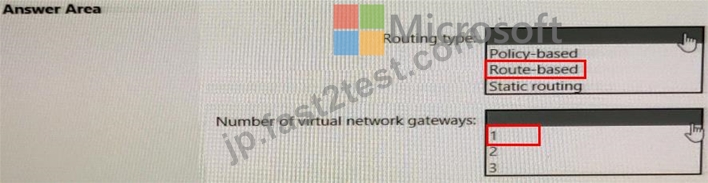

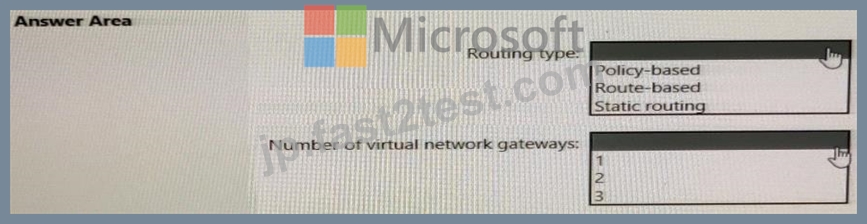

You need to connect an on-premises network and an Azure environment. The solution must use ExpressRoute and support failing over to a Site-to-Site VPN connection if there is an ExpressRoute failure.
What should you configure? To answer, select the appropriate options in the answer area.
NOTE: Each correct selection is worth one point.
正解：
解説：
Reference:
https://docs.microsoft.com/en-us/azure/expressroute/expressroute-howto-coexist-resource-manager
質問 # 86
Your on-premises network contains a VPN device.
You have an Azure subscription that contains a virtual network and a virtual network gateway.

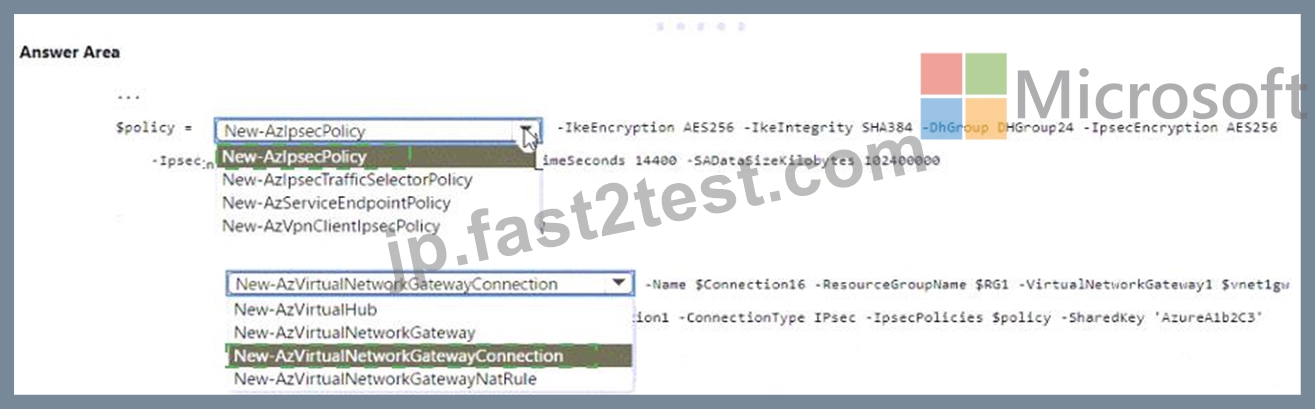

You need to create a Site-to-Site VPN connection that has a custom cryptographic policy.

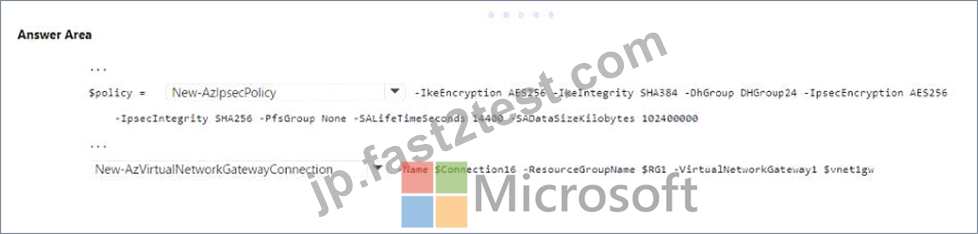

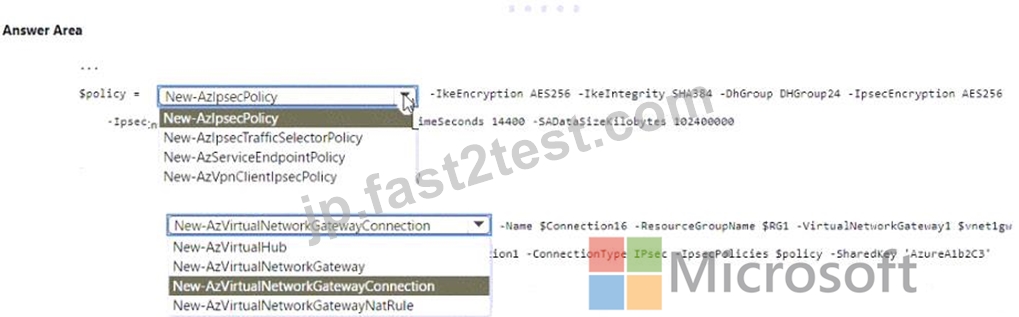

How should you complete the PowerShell script? To answer, select the appropriate options in the answer area.
NOTE: Each correct selection is worth one point.
正解：
解説：
Explanation:
質問 # 87

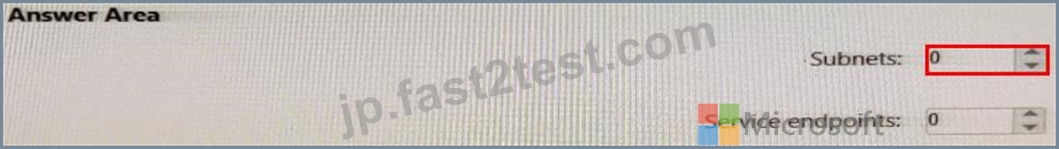

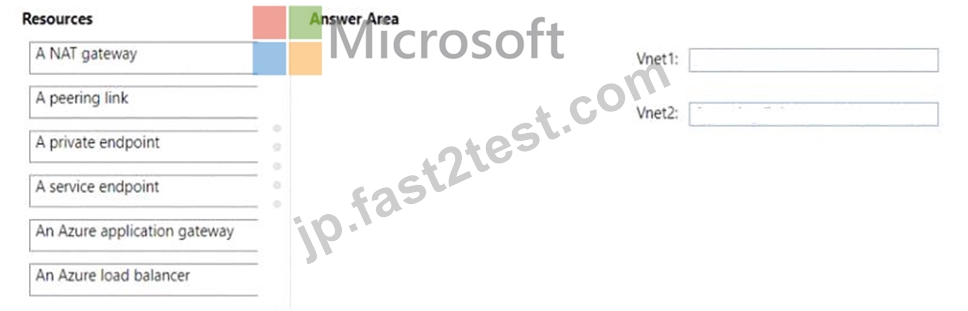

You are implementing the Virtual network requirements for Vnet6.

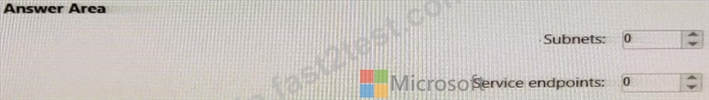

What is the minimum number of subnets and service endpoints you should create? To answer, select the appropriate options in the answer area.
NOTE: Each correct selection is worth one point.
正解：
解説：
質問 # 88
For each of the following statements, select Yes if the statement is true. Otherwise, select No.
NOTE: Each correct selection is worth one point.
正解：
解説：
質問 # 89

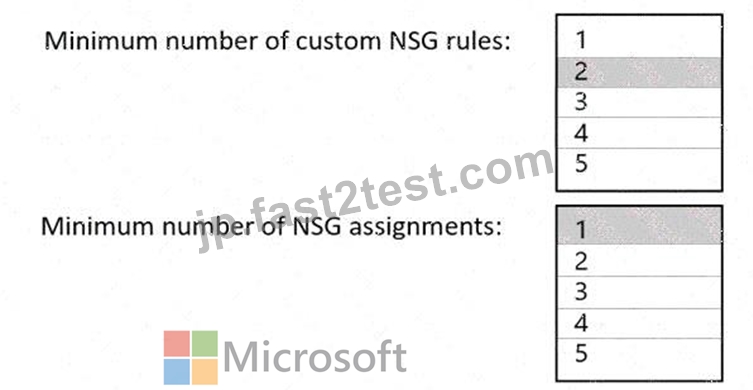

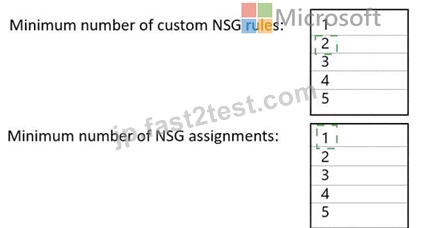

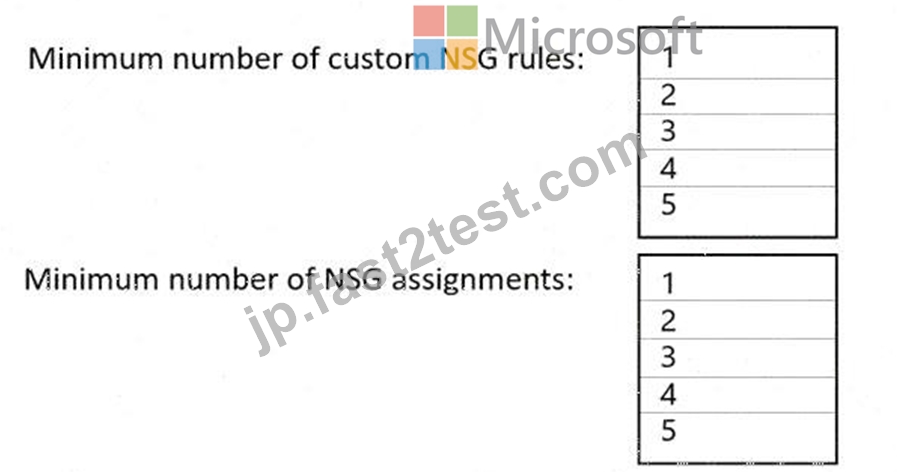

You need to restrict traffic from VMScaleSet1 to VMScaleSet2. The solution must meet the virtual networking requirements.
What is the minimum number of custom NSG rules and NSG assignments required? To answer, select the appropriate options in the answer area.
NOTE: Each correct selection is worth one point.
正解：
解説：
Explanation:
Box 2: One NSG
The minimum requirement is one NSG. You could attach the NSG to VMScaleSet1 and restrict outbound traffic, or you could attach the NSG to VMScaleSet2 and restrict inbound traffic. Either way you would need two custom NSG rules.
Box 1: Two custom rules
With the NSG attached to VMScaleSet2, you would need to create a custom rule blocking all traffic from VMScaleSet1. Then you would need to create another custom rule with a higher priority than the first rule that allows traffic on port 443.
The default rules in the NSG will allow all other traffic to VMScaleSet2.
質問 # 90
Your company has four branch offices and an Azure Subscription. The subscription contains an Azure VPN gateway named GW1.

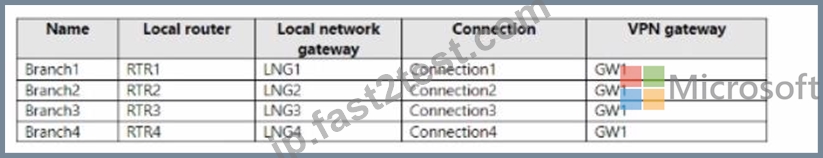

The branch offices are configured as shown in the following table.
The branch office routers provide internet connectivity and Site-to-Site VPN connections to GW1.
The users in Branch1 report that they can connect to internet resources, but cannot access Azure resources.
You need to ensure that the Branch1 users can connect to the Azure Resources. The solution must meet the following requirements:
* Minimize downtime for all users.
* Minimize administrative effort.
What should you do first?
- A. Recreate LNG1.
- B. Reset GW1.
- C. Reset Connection1.
- D. Reset RTR1.
正解：C
質問 # 91

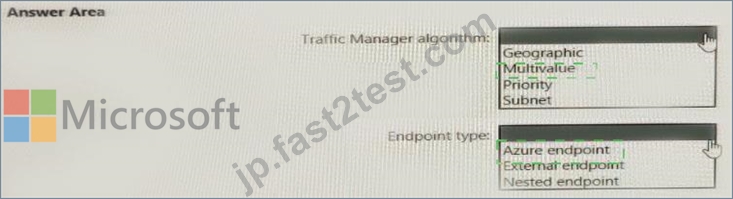

Your company has 10 instances of a web service. Each instance is hosted in a different Azure region and is accessible through a public endpoint.
The development department at the company is creating an application named App1. Every 10 minutes. App1 will use a list of end points and connect to the first available endpoint.
You plan to use Azure Traffic Manager to maintain the list of endpoints.

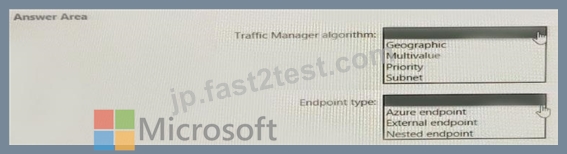

You need to configure a Traffic Manager profile that will minimize the impact of DNS caching.
What should you configure? To answer, select the appropriate options in the answer area.
NOTE: Each correct selection is worth one point.
正解：
解説：
質問 # 92
Note: This question is part of a series of questions that present the same scenario. Each question in the series contains a unique solution that might meet the stated goals. Some question sets might have more than one correct solution, while others might not have a correct solution.
After you answer a question in this section, you will NOT be able to return to it. As a result, these questions will not appear in the review screen.
You have an Azure application gateway that has Azure Web Application Firewall (WAF) enabled.
You configure the application gateway to direct traffic to the URL of the application gateway.

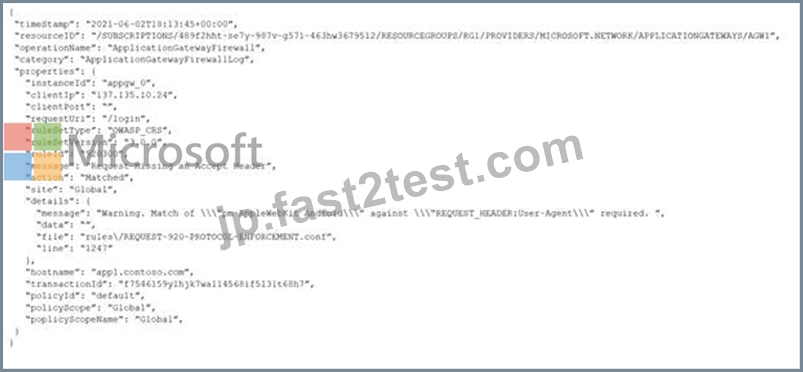

You attempt to access the URL and receive an HTTP 403 error. You view the diagnostics log and discover the following error.
You need to ensure that the URL is accessible through the application gateway.
Solution: You create a WAF policy exclusion for request headers that contain 137.135.10.24.
Does this meet the goal?
- A. No
- B. Yes
正解：A
解説：
Explanation
The parameter here should be RemoteAddr not Request header.
https://docs.microsoft.com/en-us/azure/web-application-firewall/ag/custom-waf-rules-overview#match-variable-
質問 # 93

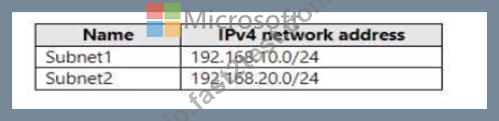

Your on-premises network contains the subnets shown in the following table.
The network contains a firewall named FW1 that uses a public IP address of 131.107.100.200.

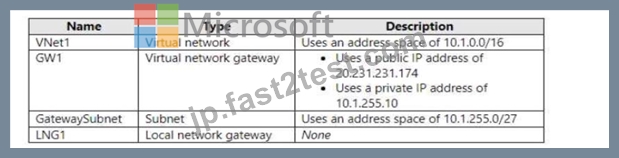

You have an Azure subscription that contains the resources shown in the following table.
You plan to configure a Site-to-Site (S2S) VPN named VPN1 that will connect GW1 to FW1.
You need to configure LNG1 to support VPN1. The solution must meet the following requirements:
* Ensure that the resources on Subnet1 and Subnet2 can communicate with the resources on VNe1l.
* Minimize administrative effort.

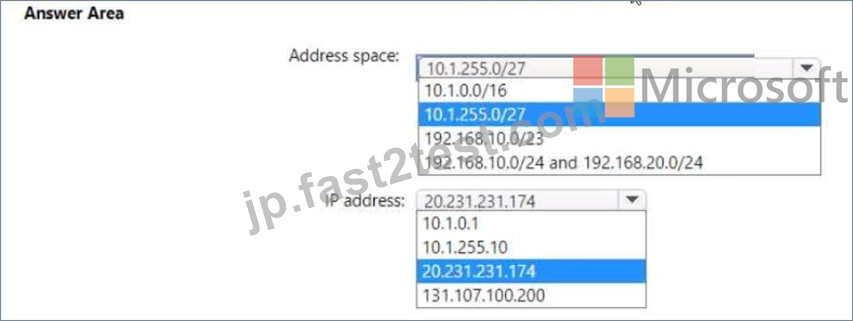

How should you configure LNG1? To answer, select the appropriate options in the answer are a. NOTE: Each correct selection is worth one point.
正解：
解説：
質問 # 94

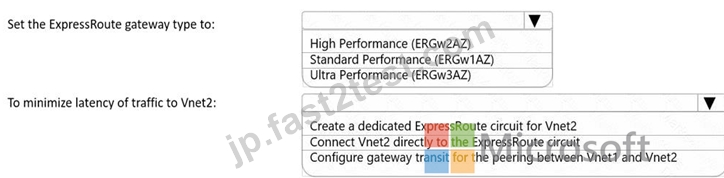

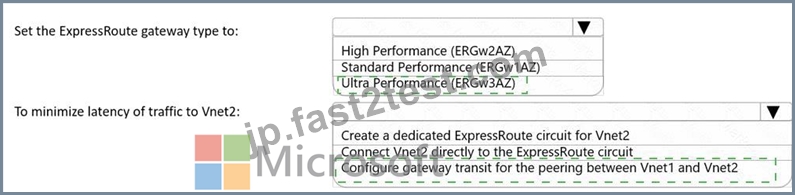

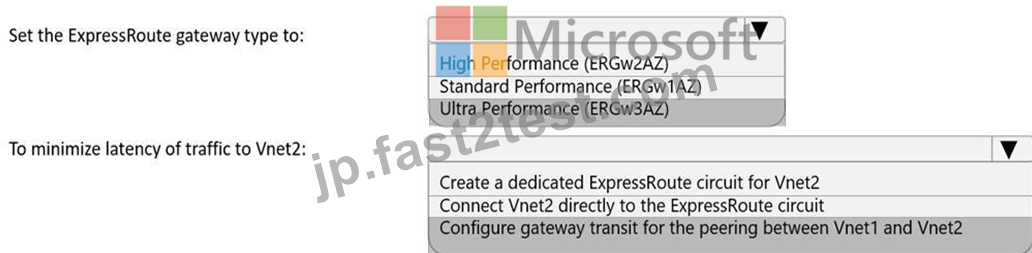

You need to recommend a configuration for the ExpressRoute connection from the Boston datacenter. The solution must meet the hybrid networking requirements and business requirements.
What should you recommend? To answer, select the appropriate options in the answer area.
NOTE: Each correct selection is worth one point.
正解：
解説：
Explanation:
For the first question, only ExpressRoute GW SKU Ultra Performance support FastPath feature.
For the second question, vnet1 will connect to ExpressRoute gw, once Vnet1 peers with Vnet2, the traffic from on-premise network will bypass GW and Vnet1, directly goes to Vnet2, while this feature is under public preview.
====Reference
ExpressRoute virtual network gateway is designed to exchange network routes and route network traffic.
FastPath is designed to improve the data path performance between your on-premises network and your virtual network. When enabled, FastPath sends network traffic directly to virtual machines in the virtual network, bypassing the gateway.
To configure FastPath, the virtual network gateway must be either:
Ultra Performance
ErGw3AZ
VNet Peering - FastPath will send traffic directly to any VM deployed in a virtual network peered to the one connected to ExpressRoute, bypassing the ExpressRoute virtual network gateway.
https://docs.microsoft.com/en-us/azure/expressroute/about-fastpath
Gateway SKU
https://docs.microsoft.com/en-us/azure/expressroute/expressroute-about-virtual-network-gateways
質問 # 95
You have an on-premises datacenter named Site1 that contains a firewall named FW1. FW1 connects to the internet.

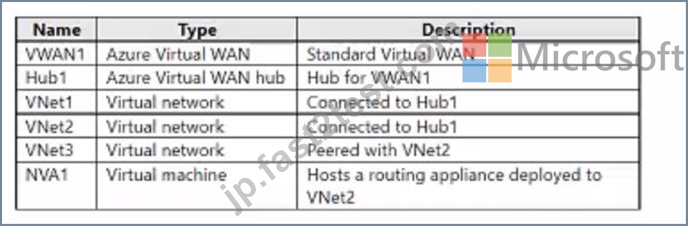

You have an Azure subscription that contains the resources shown in the following table.
You plan to connect Site1 to Hub1 by using a site-to-site connection.
You need to configure the site-to-site connection to FW1.
What should you create in VWAN1?
- A. a User VPN configuration
- B. a network virtual appliance (NVA)
- C. a virtual network connection
- D. a VPN site
正解：D
質問 # 96
You have an Azure subscription that contain a viral network named Vnet1 and an Azure SQL database named SQL1 has a private endpoint on Vnet1.
You have a partner company named fabrikam, has an Azure subscription that contains a virtual network named Vnet1 and a virtual machine named VM1, VM1 is connected to Vnet2 You need to provide VM1 with accesss to SQL 1 by using an Azure private Link service.

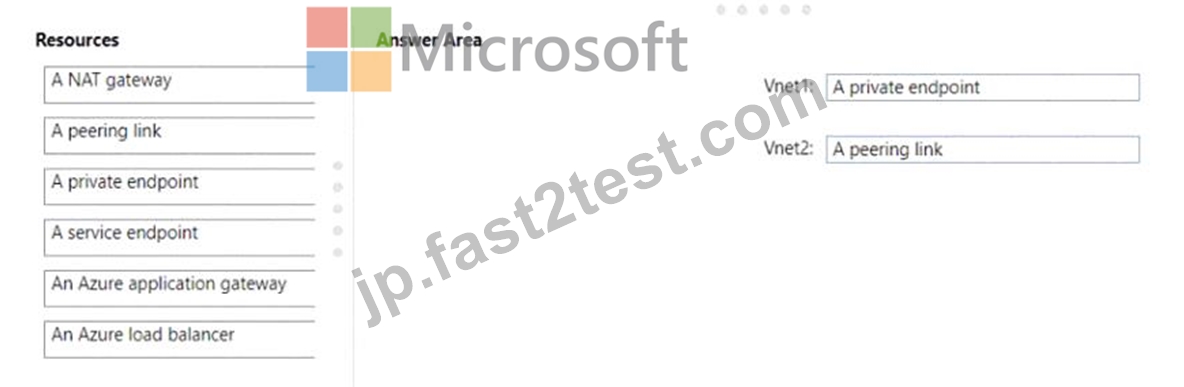

What should you implement on each virtual network? To answer, drag the appropriate resources to the correct virtual networks. Each resource may be used once, more than once, or not at all. You may need to drag the split bar between panes or scroll to view content Note: Each correct selection is worth one point.
正解：
解説：
Explanation
質問 # 97

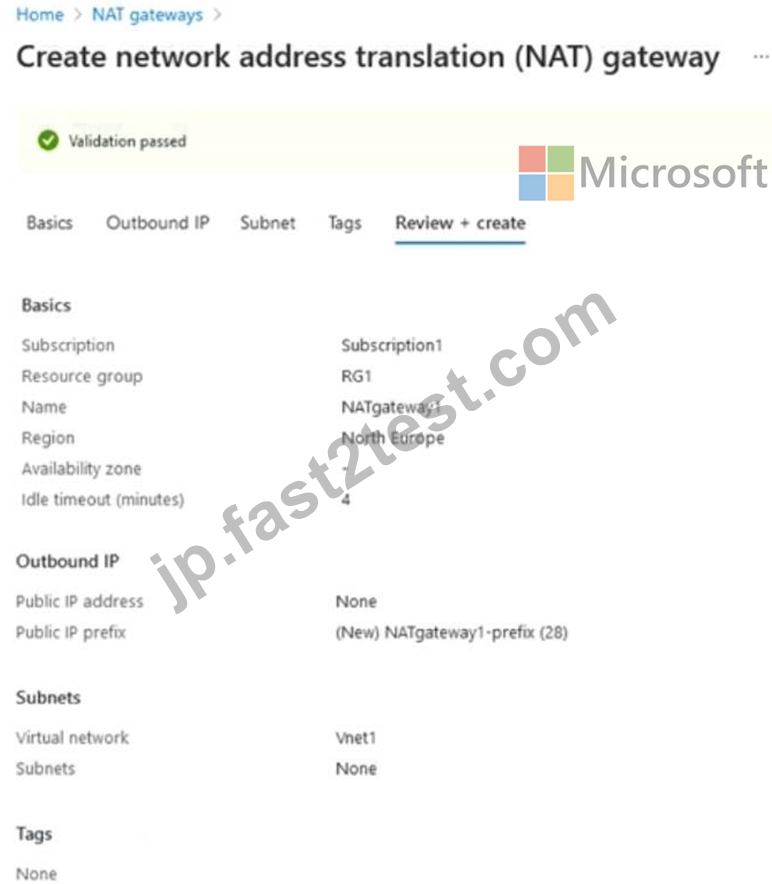

You have an Azure virtual network named Vnet1 that contains two subnets named Subnet1 and Subnet2. Both subnets contain virtual machines. You create a NAT gateway named NATgateway1 as shown in the following exhibit.

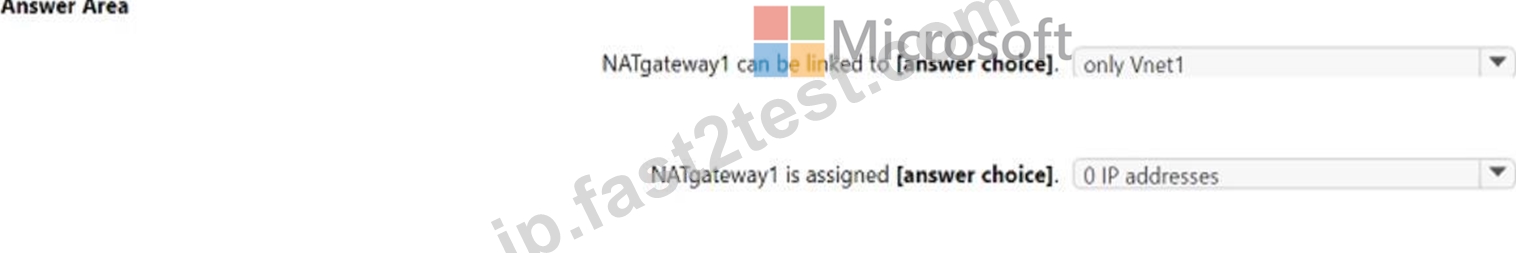

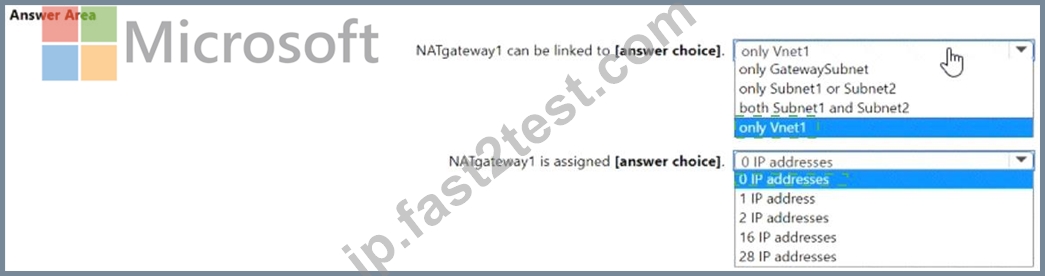

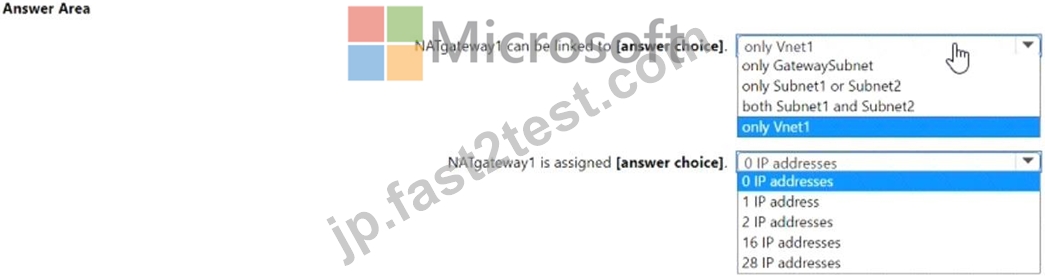

Use the drop-down menus to select the answer choice that completes each statement based on the information presented in the graphic. NOTE: Each correct selection is worth one point.
正解：
解説：
Explanation
質問 # 98
You have an Azure subscription that contains the resource groups shown in the following table.
You have the virtual networks shown in the following table.

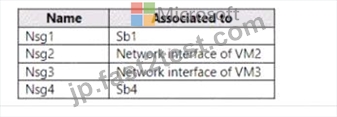

Vne1l contains two virtual machines named VM1 and VM2. Vnet2 contains two virtual machines named VM3 and VM4. You have the network security groups (NSGs) shown in the following table that include only default rules.

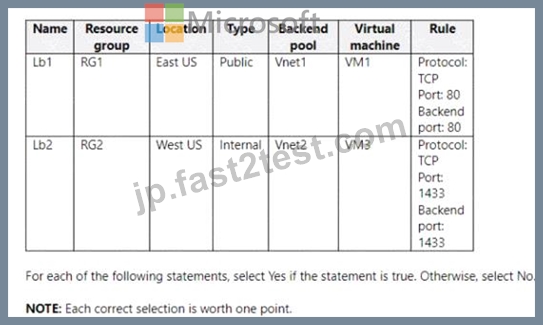

You have the Azure load balancers shown in the following table.
正解：
解説：
Explanation
質問 # 99
You have an Azure subscription that contains the resources shown in the following table.
You establish BGP peering between NVA1 and Hub1.
You need to implement transit connectivity between VNet1 and VNet3 via Hub1 by using BGP peering. The solution must minimize costs.

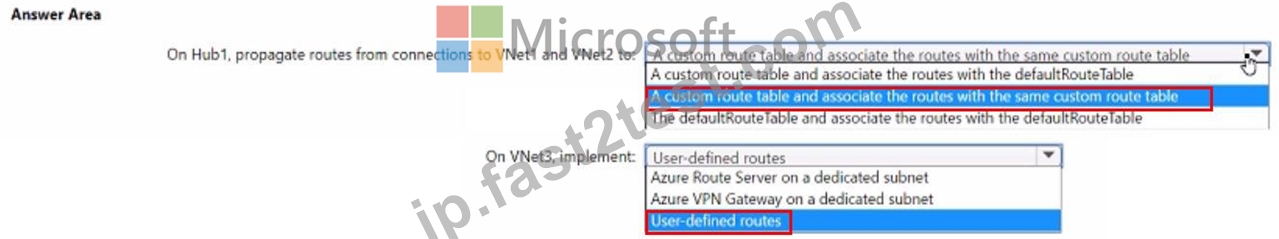

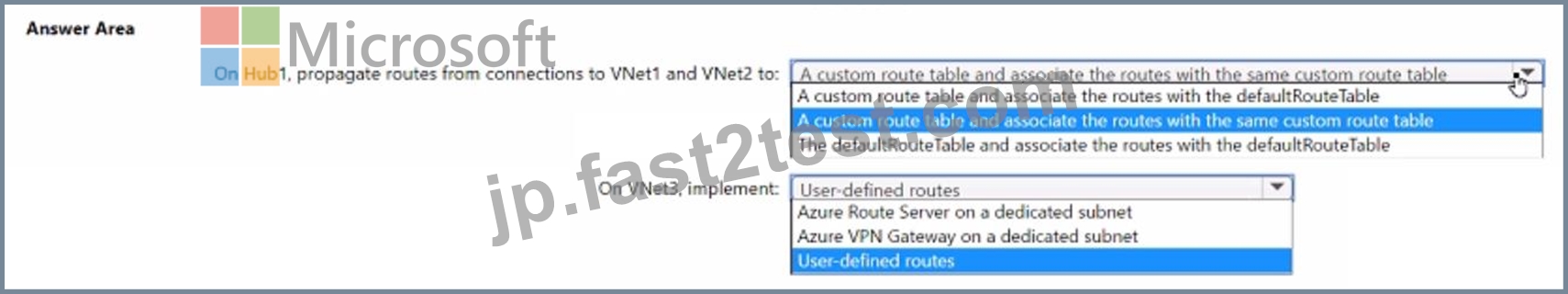

What should you do? To answer, select the appropriate options in the answer area.
NOTE: Each correct selection is worth one point.
正解：
解説：
質問 # 100

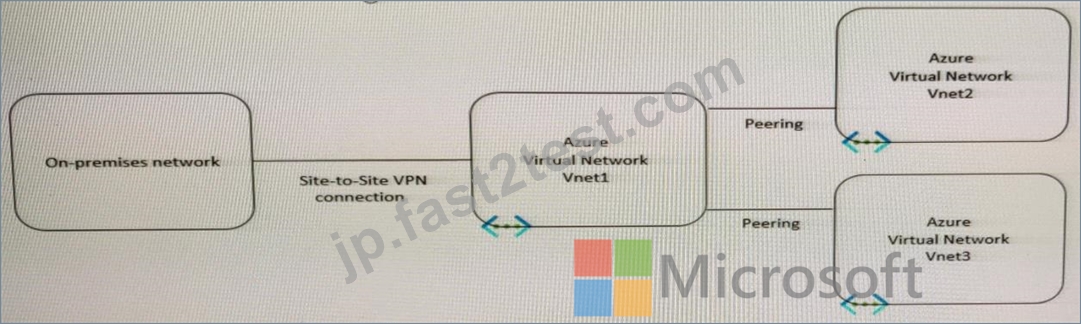

You have the hybrid network shown in the Network Diagram exhibit.

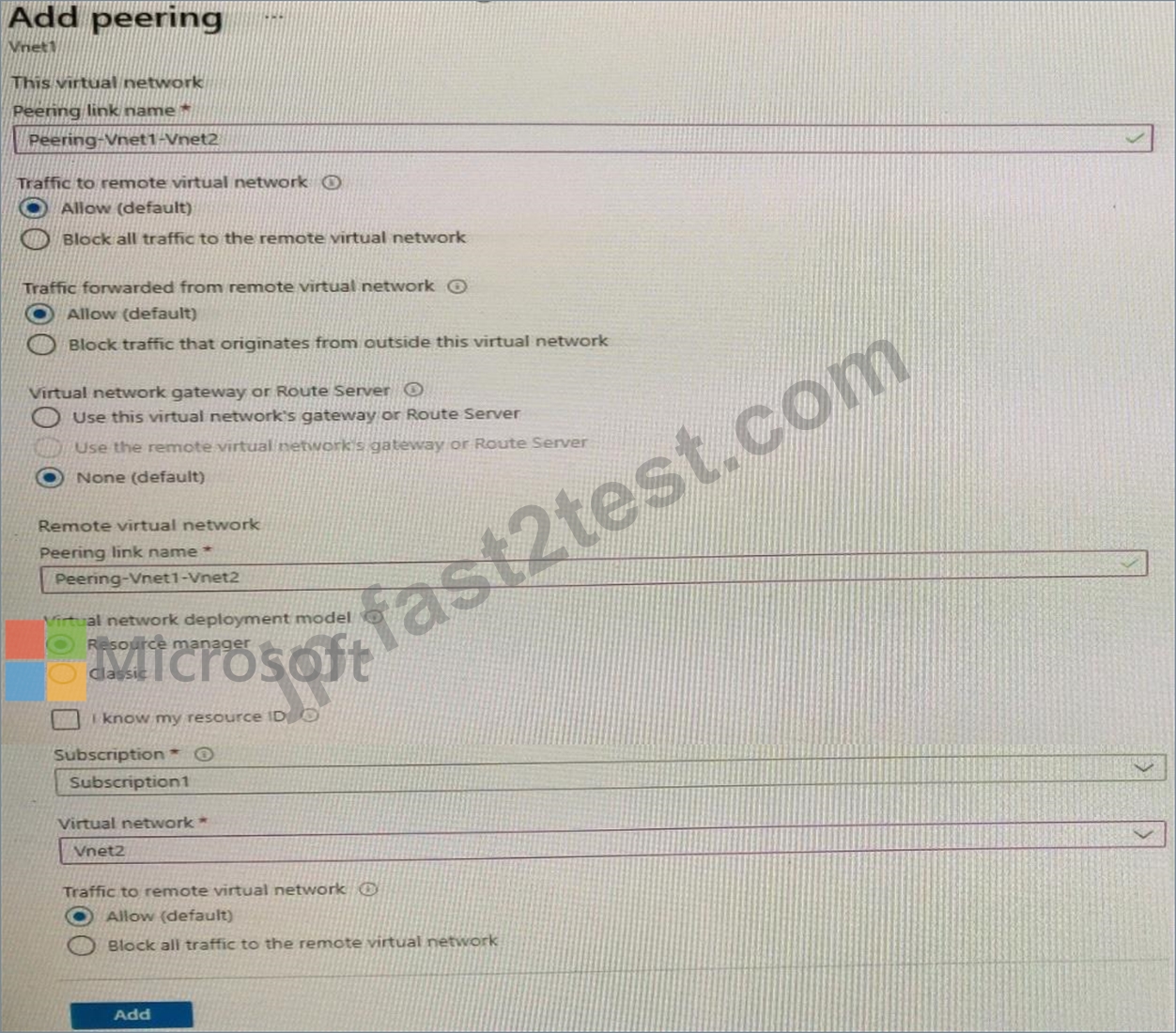

You have a peering connection between Vnet1 and Vnet2 as shown in the Peering-Vnet1-Vnet2 exhibit.

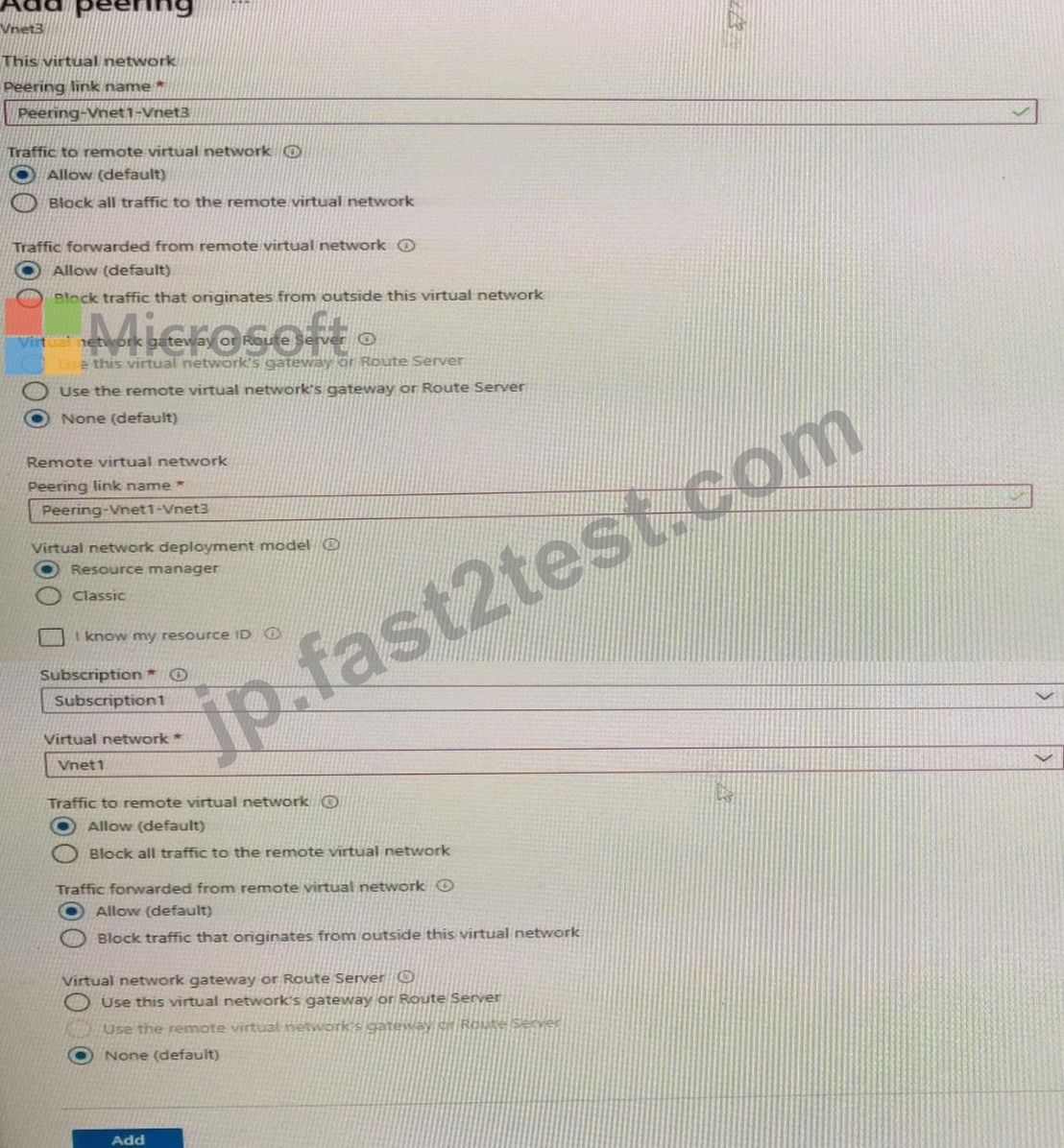

You have a peering connection between Vnet1 and Vnet3 as shown in the Peering -Vnet1-Vnet3 exhibit.

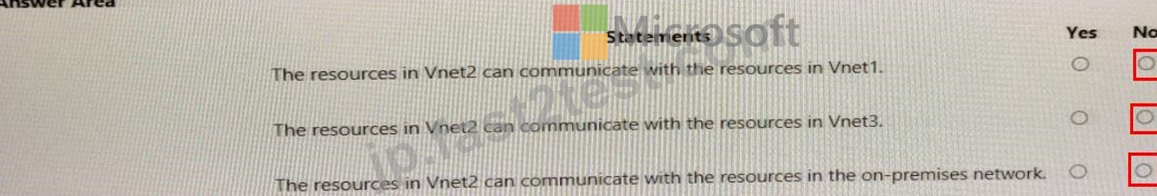

For each of the following statements, select Yes if the statement is true. Otherwise, select No.
NOTE: Each correct selection is worth one point.
正解：
解説：
質問 # 101

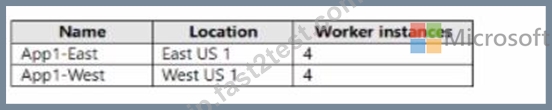

You have an Azure subscription that contains an app named Appl. App1 is deployed to the Azure App Service apps show in the following table.
You need to publish App1 by using Azure Front Door. The solution must ensure that all the requests to App1 are load balanced between all the available worker instances.

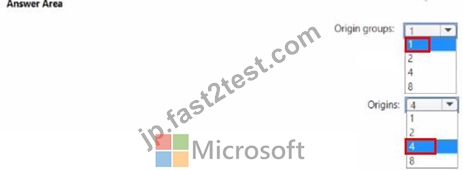

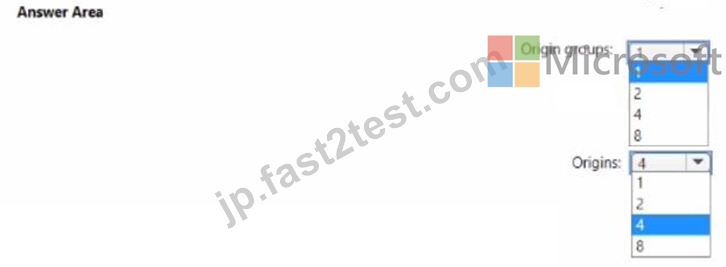

What is the minimum number of origin groups and origins that you should configure? To answer, select the appropriate options in the answer area.
NOTE: Each correct selection is worth one point.
正解：
解説：
質問 # 102
......
AZ-700試験の準備には、TCP / IP、DNS、VPNなどのネットワーキング概念の確固たる理解が必要です。さらに、Azureネットワーキング技術を使用した経験が必要です。Microsoftは、公式の学習ガイド、練習問題集、インストラクター主導のトレーニングを含む、いくつかのトレーニングコースと認定準備リソースを提供しています。
Microsoft AZ-700認定を達成することは、Azure Networkingにおける高レベルの習熟度を示し、雇用市場で競争上の優位性を提供します。世界中のITの専門家や雇用主によって、Azureネットワーキングの専門家のスキルと専門知識を検証する貴重な資格として認識されています。この認定はまた、Microsoftのリソースとコミュニティへのアクセスを提供し、Azureネットワーキングの分野での最新のトレンドと開発を個人が最新の状態に保つことができます。
あなたを余裕でAZ-700は100%試験合格率保証：https://jp.fast2test.com/AZ-700-premium-file.html
AZ-700問題集本日限定！無料アクセスが可能に！：https://drive.google.com/open?id=1PW4SQilLTTZynORV25a0VKkiAD0xltI9
